Metrolight Waterproof Luminaires, for specific environments where quality and safety it is an important factor, it has a simple and functional lines design that adapts perfectly to the different architectural, industrial spaces, tunnels and roads for which it is conceived.
Intelligent Luminaire Guided Light Tunnel and Fire Evacuation / Signaling
Characteristics of Intelligent Evacuation Signals
- Material Stainless Steel dimensions: 610 x 467 x 48 mm
- Illuminated Pictogram 300 x 300 mm (H X L), DIN 4844
- Nichia LED boards (PCB’s) White Led
- Illuminance> 200 cd / sqm Frontal Pictogram
- Led strips Side escape Led Green> 75 cd / m2 adjustable
- Fire Emergency Light:> 25 cd -87 to +87 degrees
- Viewing distance: 180m
- IP65 (EN60529)
- IK10
- Weight: 10 Kg
- Consumption: 13w. 230VAC / 50hz
- Operating temperature: -20C + 50C
- CE, BAST Approved, RABT 2006 Compliant
- For Wall mounting
- Possibility of unit supply in 48V.

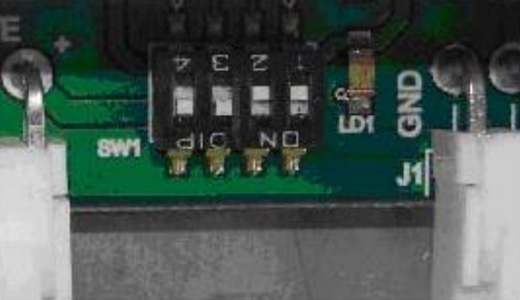

- Selection of DIP switches for the operation and regulation mode.
- Dip switch 4: Green Light Level ON = 100% OFF = 50%
- Dip switch 3: Green light ON = 100% OFF = 75%
- Dip switch 2, 1: OFF-OFF mode Light Orientation Fire ON with 230V current
- OFF – ON Light Orientation Fire Flashing with current 230V
- ON – OFF Light Orientation Fire ON in the absence of 230V
- ON – ON Orientation Light Fire flashing in the absence of 230V
Tunnel Luminaires
It has excellent lighting performance in relation to its low consumption.
Constant current power supply and emergency kit 90 minutes included in the body of the product.
Direct connection to the electrical network.
Characteristics Guide Led Tunnel Luminaire
- Dimensions: 600 x 125 x 85mm
- Material: PC + PC Milky, Transparent finish
- Power: 29w
- Lumen: 3335 lm
- CCT: 6750ºK
- Angle: 120º
- Led: Philips 2835 SMD
- Power Supply: Philips + BAC 90 Minutes
- Voltage: 100-277VAC
- IK: 08
- IP65
- CRI >80
- PF: >0.9
Indoor or Outdoor Fixture – HighLINER 3
Sealed fixture designed as a comprehensive LED solution for lighting in parking areas, tunnels, and guidance signage.
Features IP68 protection rating and DALI compatibility.
10-year warranty.
Railed Asymmetrical Tunnel 360º
RAILled 2D Asymmetric Handrail lighting projector.
Simple snap-on installation.
For emergency lighting in tunnels and sensitive areas.
Features Railed Tunnel Asymmetrical 360º Railed Tunnel
- Simple snap-in installation
- Emergency lighting in tunnels and sensitive areas
- Great versatility
- LED power consumption 1 Watt
- Operating current 350ma (typ. FV 2.85)
- 120 lumens
- Color temperature: 3000K warm white / 4000K cool white CRI 80
- Beam angle 19 -36 degrees
- Protection: IP67 IK10
- Supplied with 200 mm / 1.2 mm black and red PTFE sleeved cable
More than any other Handrail Lighting RAILled 2D Asymmetric spotlight offers unmatched versatility.
When running a project simulation in photometric software, consider this product as a conventional spotlight, allowing movement in two planes.
Lighting and Signaling Tunnels See More Products
Metrolight is specialized in the lighting and signaling of tunnels, led projectors, led studs for the lateral corridors of the tunnels, signage with LED emergency doors for tunnels.
